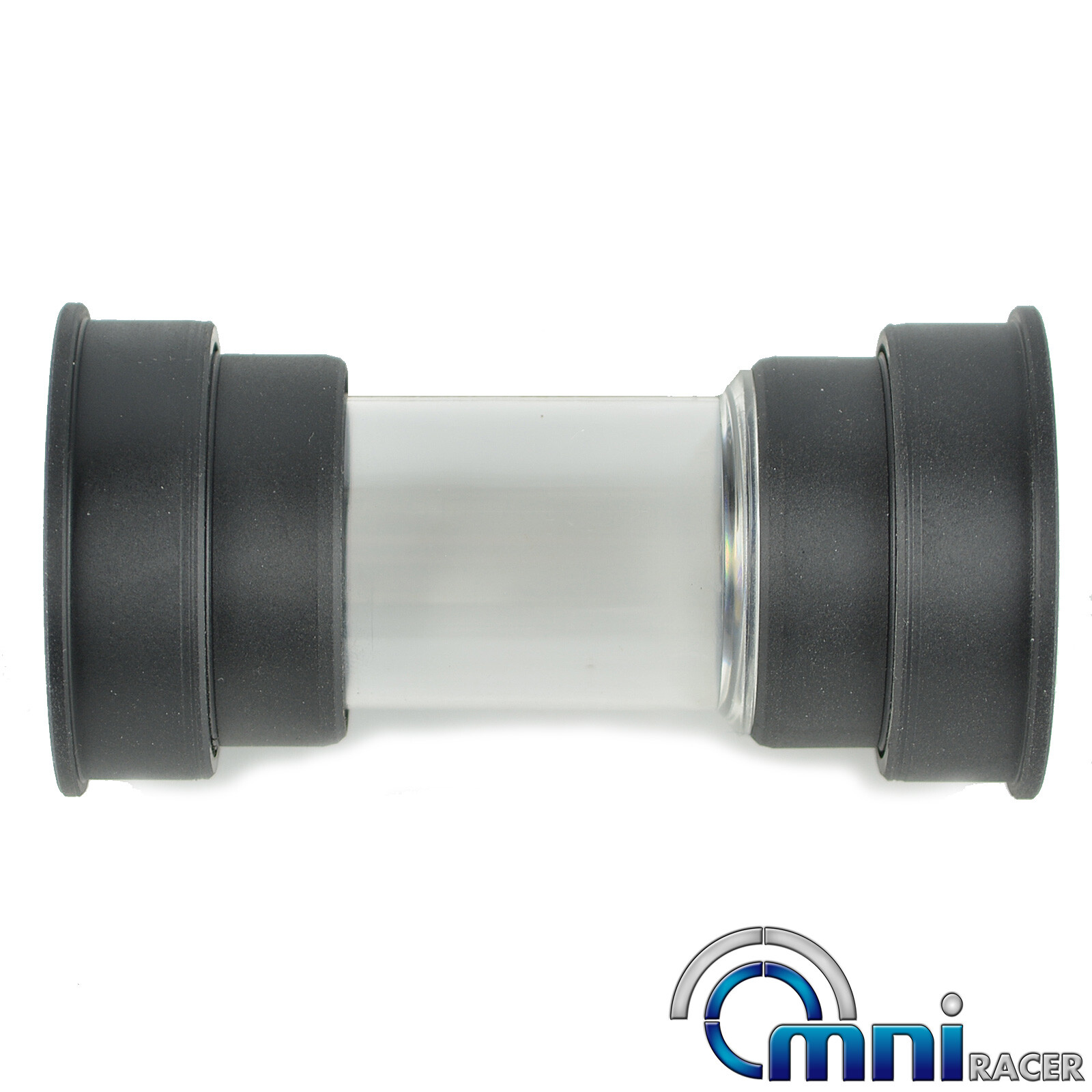

OMNI Racer WORLDS LIGHTEST Ti CERAMIC Bottom Bracket BB86 BB92 For Shimano

FRAME FIT:

• BB86/92 (41×86.5mm)

• BB86/92 (41x90mm)
• BB86/92 (41×91.5mm)
• BB86/92 (41×104.5mm)
• BB86/92 (41x107mm)
• BB86/92 (41x121mm)
• BB86/92 (41x132mm)

CRANKSET FIT:

• Shimano Hollowtech II Cranksets: Ø24mm axle

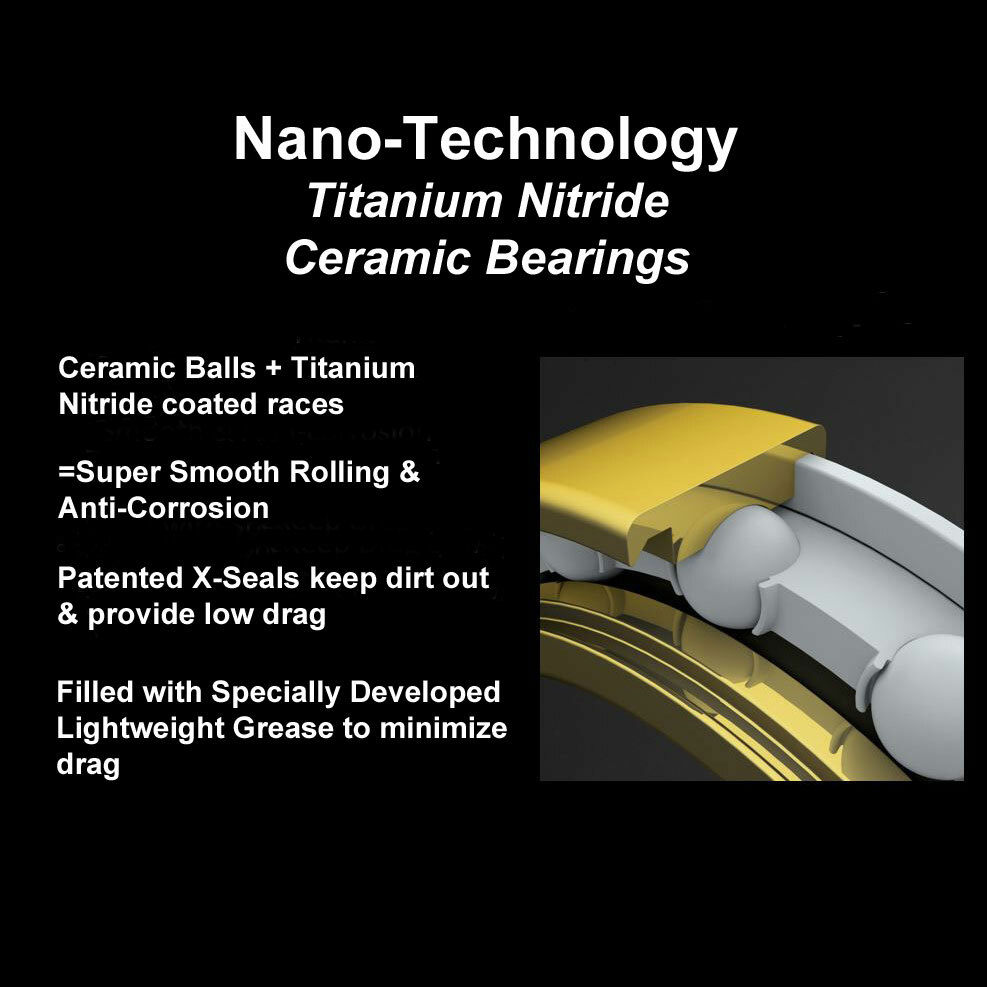

• SUPER SMOOTH TiN CERAMIC BEARINGS: Nano-technology Titanium Nitride coated ABEC 5 Grade bearing races with
  Si3N4 Grade 3 ceramic balls. Lighter stiffer & smoother and will
  last longer than other ceramic and steel bearings


• Performance Breakthrough – Speed increases approaching 4%, i.e., over 1 km a rider can gain 20-40m
• TiN nano-technology surface treatments fill
  stainless steel pores making the bearing races smoother, harder, and
  more durable than standard stainless races.
• 60% lighter than steel bearings
• Produce up to 60% less friction
• 15-20% stiffer than steel ones
• Extremely resistant to corrosion
• Lifetime 10 times longer than steel bearings

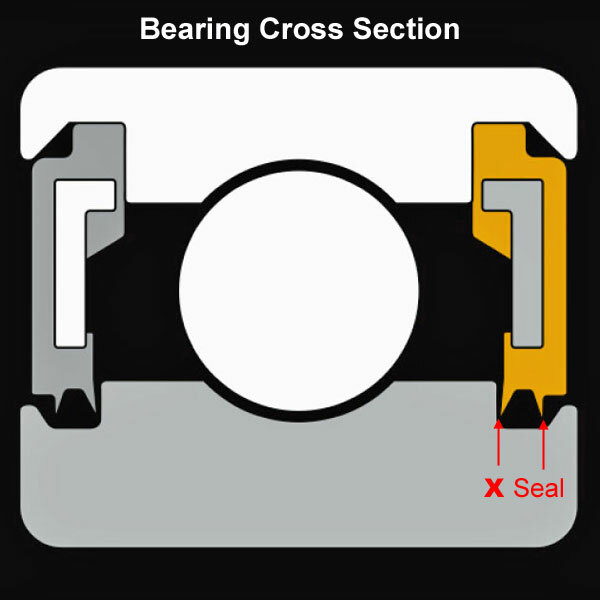

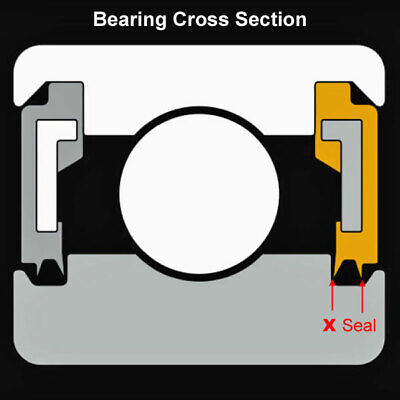

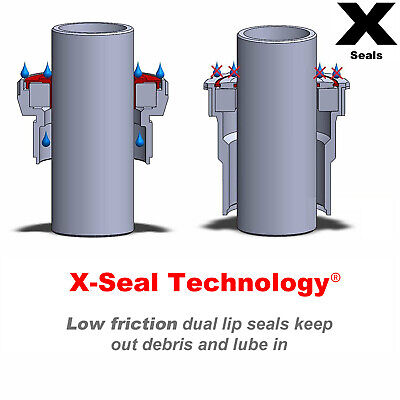

• SUPER LOW FRICTION X-SEALS: Patented technology uses Low Friction Dual Lip Seals housed
  in the Premium bearings and CNC machined alloy cups. This allows the
  seals to fit very precisely and allow for less contact between the
  rotating parts in order to reduce energy-wasting friction. In addition,
  the seals provide better protection for the bearings since there is
  less space for the elements to get past the seals
• SUPER LIGHTWEIGHT PF FIBER CUPS: Durable injection molded Polyester Fiber cups for lightweight and noise elimination.

• LIGHTWEIGHT: Combination of the lightest materials and construction make for the LIGHTEST square taper bottom bracket made

• BEARING GRADE: ABEC 5 standard. Bearing design must pass all standard tests,
  which include noise testing at high RPM, extremely close tolerances for
  I.D. and O.D., roundness of ball, trueness of the races and micro
  surface finishes of balls and races.

• BEARING RACE MATERIAL: Nano-technology Titanium Nitride coated alloy steel. Surface
  hardness: HV2800~3000 kg/mm2, TiN thickness: 0.2µm, Passed corrosion
  testing for over 72hrs

• BEARING BALL DENSITY: Full Ceramic Si3N4 Grade 3, Bearing Ball Density: 3.2g/cm³Vickers Hardness Index: 1,700-2700 kg/mm²
• BEARING RETAINER: Low Friction Nylon retainer diminishes rolling resistance making these bearings run smoother and quieter

• ENCLOSURE SEAL TYPE: X-SEAL Low Friction Dual Lip Silicone – Reduced friction while
  keeping grease in and invading contaminants out ensuring longer bearing
  life
• LUBRICANT: Kluber ISOFLEX NBU 15 Provides excellent protection against the
  elements of rain, dirt, muck, and sand over extended periods of testing,
  far outlasting other greases.

PRODUCTS SPECIFICATIONS:

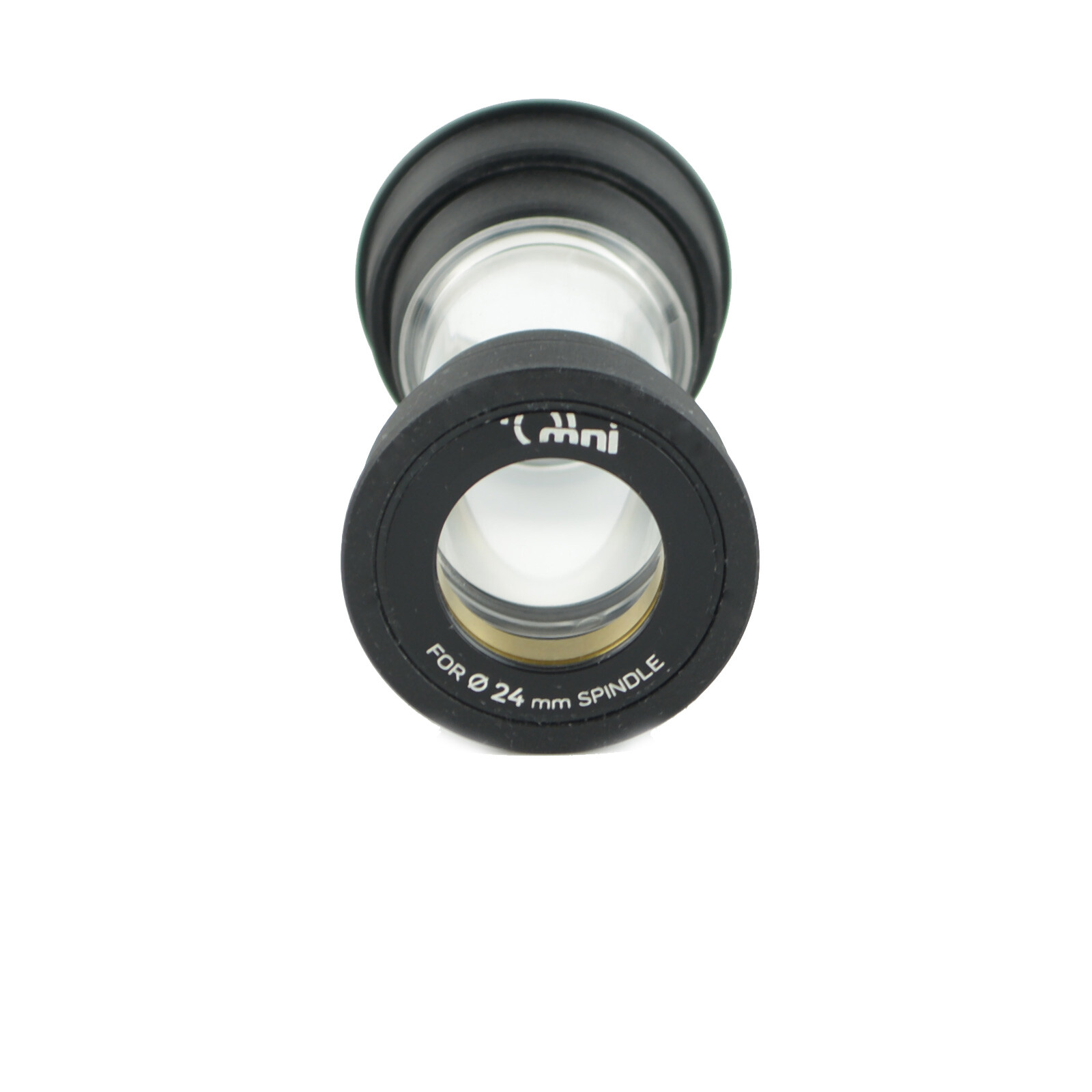

• Ø41mm PF Fiber cups inserted with Ti Ceramic Bearings
• 2- 1mm spacers
• WEIGHT: 62g per set (70g with optional sleeve)
